ThingMagic Development Kits

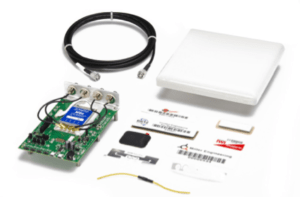

Mercury DevKit Hardware Contents

  • RFID Module mounted in DevKit chassis
  • 9V AC Power adapter
  • Sample RFID tags
  • USB cable
  • Antenna Cable
  • 7.5-inch wideband antenna

MERCURY DevKit

The Mercury DevKit for ThingMagic UHF RFID modules contains all the components necessary to begin reading and writing RFID tags and developing RFID-enabled applications. A powerful application programming interface (MercuryAPI) provides code examples, a graphical read-write demo program, and delivers a consistent programmatic interface for development with all ThingMagic readers and embedded module products.

Impinj Development Kits

Part NumberDescription
IPJ-E4001-1Indy RS2000-1 Development Kit (all regions except Japan and China)
IPJ-E4001-2Indy RS2000-2 Development Kit (900 MHz regions including Japan and China)
IPJ-E4000-GXIndy RS500-GX Development Kit (Americas/APAC)
IPJ-E4000-EUIndy RS500-EU Development Kit (ETSI/EU)
IPJ-E3002Indy R2000 Development Kit (FCC & ETSI)
IPJ-E6002Monza X Development Kit

RS2000 Development Kit

The Indy RS2000 Development Kit is your first step towards developing an embedded RAIN RFID reader. The kit enables developers with all the components needed to evaluate the Indy RS2000 SiP and prototype their embedded RAIN RFID reader.

The RS2000 Development Kit includes:

  • Main development board
    • Mini-USB
    • RS323 DB9, UART serial
    • 3V TTL (header), UART serial
    • 5V power supply
  • Near and far field antennas
  • Tag samples
  • 2 sample SiPs for prototyping
  • All necessary cabling
  • USB thumb drive with documentation and demo application

RS500 Development Kit

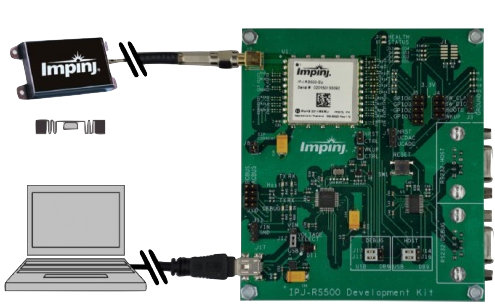

The Indy RS500 reader SiP (system-in-package) is a completely integrated reader in a small surface mount package.  The Indy RS500 and the RS500 Development Kit makes embedding RAIN RFID easy.  Simply connect DC, UART communication and an antenna to start reading tags.

RS500 Development Kit includes:

  • Main development board
    • Mini-USB
    • RS323 DB9, UART serial
    • 3V TTL (header), UART serial
    • USB powered or 3.6-5V supply
  • Near and far field antennas
  • Tag samples
  • 3 sample RS500 SiPs for prototyping
  • All necessary cabling

Monza X Development Kit

Monza X chips bring intelligent embedded RFID to devices. You can use the Monza X Development Kit for rapid prototyping and leverage the Monza X Software API to build your applications.

The Monza X Development Kit includes:

  • Two Monza X (Monza X-2K and Monza X-8K) development boards
  • Platform-independent C library and sample application
  • 10 chips each of Monza X-2K Dura and Monza X-8K Dura
